Tabletop paste filling machine

Model:GCG-A/250 Filling accuracy:±0.5%

Filling range:80-250g

Capacity:15-25pcs/min

Air pressure:0.3-0.5Mpa

Power suppy:110/220V 50/60HZ

Machine body made of ss304

Material contact part made of ss316

Pneumatic parts are Airtac from Taiwan

Free standing liquid filling machine

Model:GC-BL/250

Filling accuracy:±0.5%

Filling range:80-250ml

Capacity:15-25pcs/min

Air pressure:0.3-0.5Mpa

Power suppy:110/220V 50/60HZ

Machine body made of ss304

Material contact part made of ss316

Pneumatic parts is Airtac from Taiwan

Table top cake filling machine

Model:GCG-CF/250

Filling accuracy:±0.5%

Filling range:80-250g

Capacity:15-25pcs/min

Air pressure:0.3-0.5Mpa

Power suppy:110/220V 50/60HZ

Machine body made of ss304

Material contact part made of ss316

Pneumatic parts is Airtac from Taiwan

With quick disassemble rotary valve

With ss316 piston heads and spring seal

With production counter

With fixed nozzle or hand operated nozzle for option

Tabletop liquid filling machine

Model:GC-A/100

Filling accuracy:±0.5%

Filling range:30-100ml

Capacity:25-35pcs/min

Air pressure:0.3-0.5Mpa

Power suppy:110/220V 50/60HZ

Machine body made of ss304

Material contact part made of ss316

Pneumatic parts are Airtac from Taiwan

Gear pump paste filling machine

Model:GCG-CLM

Filling accuracy:±1g

Min.filling volume:5g

Power suppy:110/220V 50/60HZ

Machine body made of ss304

Material contact part made of ss316

PLC and servo motor touch panel is WINMO from HK Can be operated by foot pedal or automatic Filling volume can be adjusted easily through touch panel

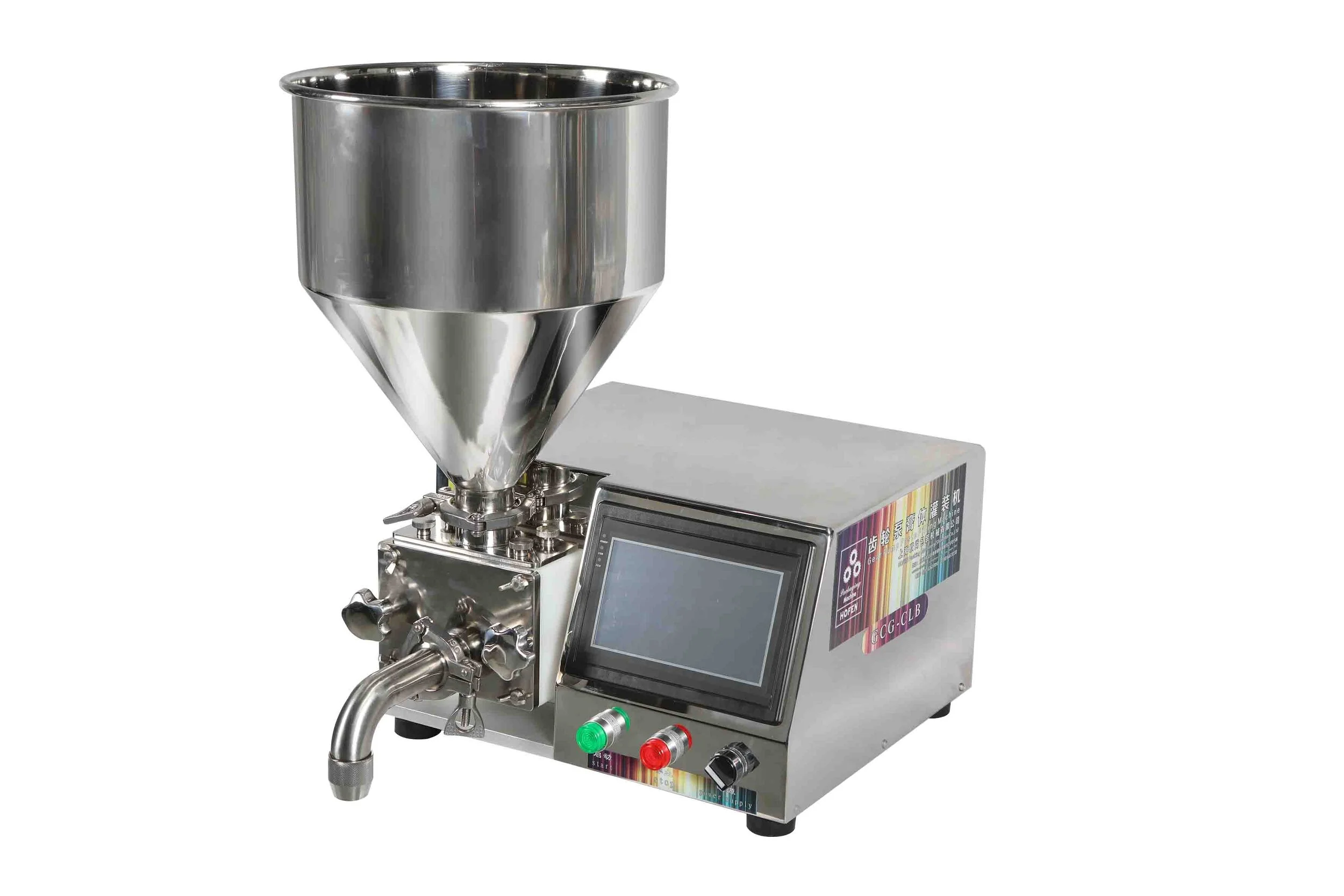

Gear pump liquid filling machine

Model:GC-CLB

Filling accuracy:±1g

Min.filling volume:5g

Power suppy:110/220V 50/60HZ

Machine body made of ss304

Material contact part made of ss316

PLC and servo motor is Delta from Taiwan

Touch panel is Weinview from Taiwan

Can be operated by foot pedal or automatic Filling volume can be adjusted easily through touch panel

Hopper Topper(Material transfer pump) Model:GCG-HT

Power suppy:110/220V 50/60HZ

Capacity:15-20L/min

Machine body made of ss304

Material contact part made of ss316

Pneumatic part is Airtac from Taiwan

Can be operated by foot pedal or automatic

Automatic arrange cake depositor

Model:GCG-ACF/250

Filling range:10-250ml

Filling accuracy:±1%（Subject to max.volume) Capacity:20-35pcs/min(According to volume and products)

Voltage:220V 50HZ Air pressure:0.5-0.7Mpa Power:About 2kw

Machine body made of ss304,material contact part made of ss316

Tray detecting sensor is Panasonic from Japan PLC is FATEK from Taiwan Servo system is Panasonic from Japan Touch Panel is Weinview from Taiwan Piston driven by electrical cylinder With quick assemble and disassemble rotary valve With ss316 piston components and spring seal
